Features:

• Frequency Range: 9 kHz to 30 MHz
• Current Ratings - 100 Amps
• Fully Compliant with CISPR 16-1-2(CE)and ANSI C63.4(FCC)
• Remote Switching of Line Under Test
• Four-conductor, 50Ω, 50/250 μH 5Ω Networks for 3Ø Delta and Wye Power Configurations
• Three-Year Warranty

Specifications:

• Products Description -Line Impedance Stabilization Network (LISN)
• Application - Power Line Conducted Emissions (Disturbance Voltages) Tests
• Standards - CISPR 16-1-2 (CE), ANSI C63.4 (FCC)
• Type - 50Ω, 50/250 µH 5Ω, (4) Conductor Network
• Frequency Range - 9 kHz to 30 MHz
• Insertion Loss - 9 kHz to 150 kHz <6.5 to <0.7 dB (decreasing linearly with the logarithm of frequency)
• Insertion Loss - 150 kH to 30 MHz <0.7 dB
• Isolation - 9 kHz to 50 kHz >0 to >40 dB (increasing linearly with the logarithm of frequency)
• Isolation - 50 kHz to 30 MHz >40 dB

The Com-Power LI-3P-2100 is an LISN. The LI-3P-2100 LISN uses air-core inductors to prevent saturation and permeability variation. The mounting plates are left unpainted in order to facilitate connection to earth ground in their installation, which is essential due to high leakage currents.

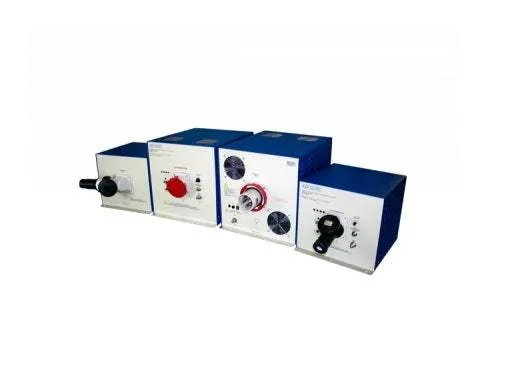

The image is for reference only. See product specification for details.
