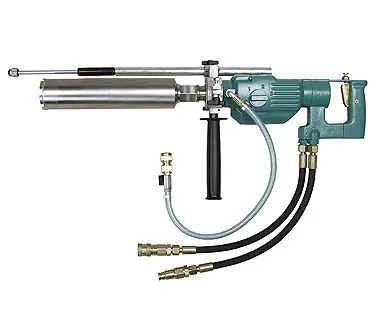

Name: The Powerful 3-Speed Hydraulic Diamond Core Drill
SKU: 285473

Product Details ＋

Ideal for heavy-duty wet drilling in concrete, reinforced concrete and asphalt.

Holes up to 6" diameter mounted in a drill stand
Use hand-held up to 3-1/4" diameter or rig-mounted
Mechanical slip clutch design
Load Speeds: 380 / 900 / 1800 RPM
3.6 HP (2.8 kW)
Motor Weight: 16 lbs.
For concrete, reinforced concrete and masonry materials
Ideal for professional drilling contractors and underwater applications

Industry's first 3-speed hand-held Hydraulic Diamond Core Drill

This powerful wet diamond core drill is designed for fast, accurate drilling in concrete, reinforced concrete and other masonry materials. Use it hand-held up to 3" diameter or mounted in a drill stand up to 6" diameter. Sealed 3-speed gearbox with permanent oil bath lubrication.

The hydraulic motor operates at 2000 PSI oil pressure. The required flow is 6 GPM. Additional flow is automatically bypassed back to the tank up to a maximum input of 13 GPM.

The hydraulic core drill incorporates a safety slip clutch and water swivel. 5/8" x 11 UNC and 1-1/4" x 7 UNC and G 1/2" connecting threads are standard. 1/2" hose diameter with 3/8" FF (HTMA) couplings.

Optional accessories include anchor stand, combination anchor/vacuum stand, centering aid, portable water tank, water collection ring kit, Unicore Diamond Core Bits and Hydraulic Power Unit.

2 1317 0030

Motor Power	3.6 HP
Max. Drilling Dia.	6"
Free Speed (RPM)	380 / 900 / 1800
Connecting Threads	1-1/4"x7 UNC Male 5/8"x11 UNC Male G 1/2" Female
Hose Diameter	1/2" ID hose with 3/8" FF (HTMA) couplings
Water Connection	3/4" Gardena system (included)
Oil Flow / 2000 PSI	6 GPM
Weight (lbs.)	16
Stand	N/A

2 1317 0030 SA

Motor Power	3.6 HP
Max. Drilling Dia.	6"
Free Speed (RPM)	380 / 900 / 1800
Connecting Threads	1-1/4"x7 UNC Male 5/8"x11 UNC Male G 1/2" Female
Hose Diameter	1/2" ID hose with 3/8" FF (HTMA) couplings
Water Connection	3/4" Gardena system (included)
Oil Flow / 2000 PSI	6 GPM
Weight (lbs.)	47
Stand	Rig Mounted Core Drill w/ Anchor Stand

2 1317 0030 SV

Motor Power	3.6 HP
Max. Drilling Dia.	6"
Free Speed (RPM)	380 / 900 / 1800
Connecting Threads	1-1/4"x7 UNC Male 5/8"x11 UNC Male G 1/2" Female
Hose Diameter	1/2" ID hose with 3/8" FF (HTMA) couplings
Water Connection	3/4" Gardena system (included)
Oil Flow / 2000 PSI	6 GPM
Weight (lbs.)	55
Stand	Rig Mounted Core Drill w/ Anchor Stand & Vacuum Pump

Industry's first 3-speed hand-held Hydraulic Diamond Core Drill

The Powerful 3-Speed Hydraulic Diamond Core Drill
